Envelope before routing
Overall dimensions, estimated weight, raw-stock size, and feature access are organized before equipment fit is confirmed.

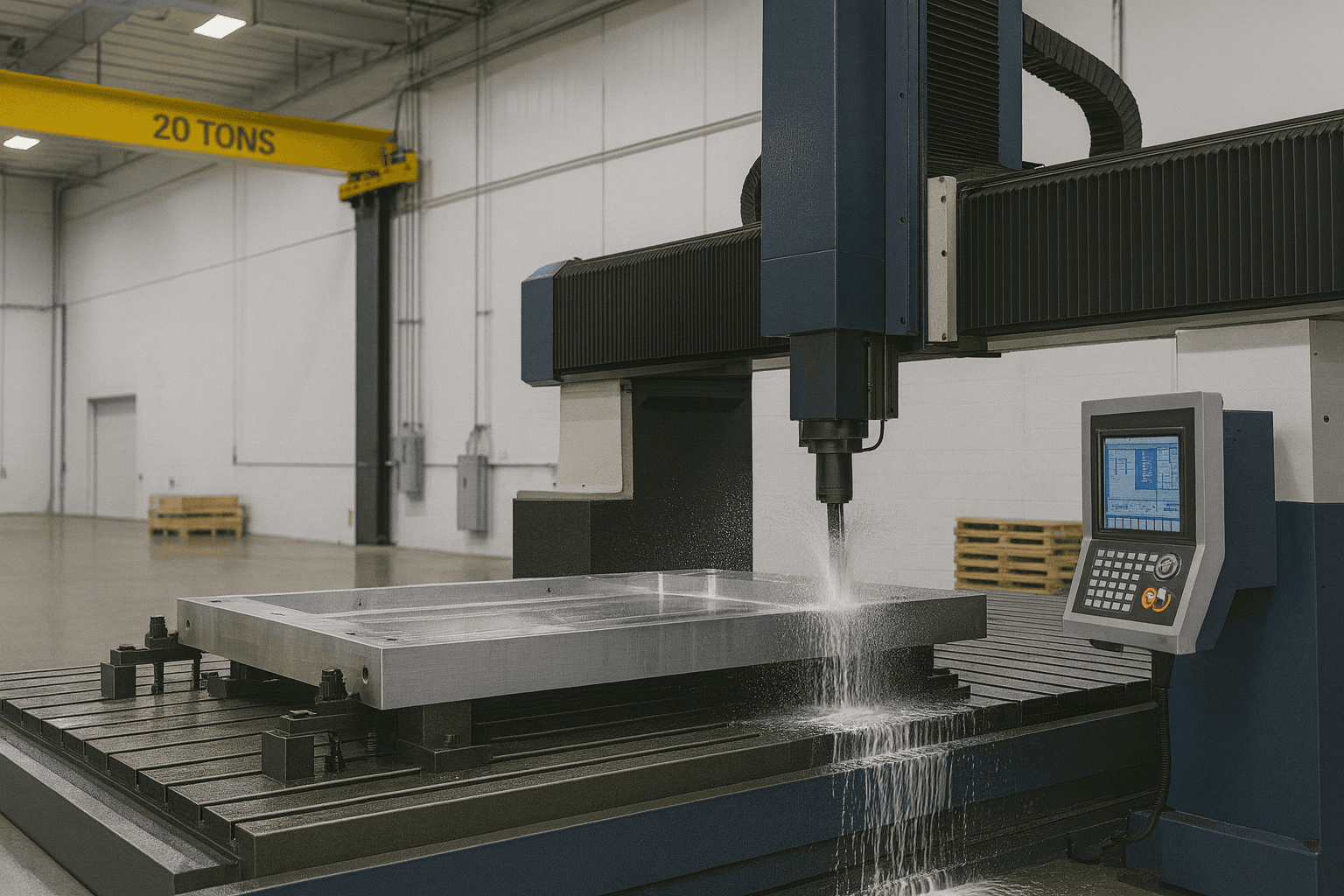

Gantry milling services

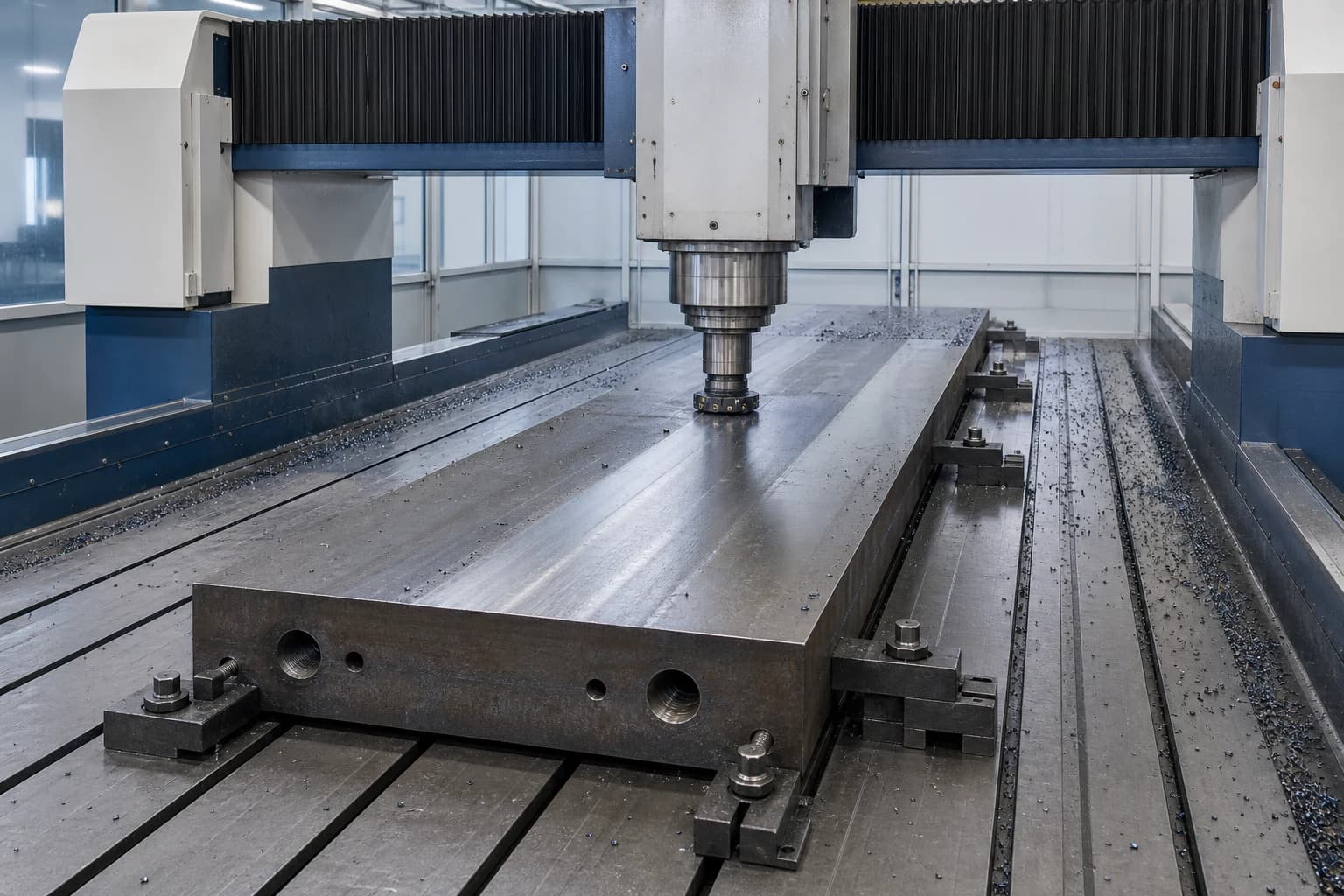

Large-format milling, planned from the part.
Oversized plates, bases, tooling blocks, and weldments raise review questions around overall envelope, stock condition, support, access, datum strategy, long-span feature relationships, and inspection. Share the model and drawing so Pearson can organize those constraints and confirm a project path before acceptance.
- Envelope and stock context
- Support and datum review
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
A clearer way to review oversized milled parts.
Scaling up a plate, base, tooling block, or weldment changes the questions before machining begins. Overall dimensions and mass, stock condition, support points, clamping access, tool access, primary datums, long-span feature relationships, and inspection access should be visible before a process path is selected.
Support and stock context
Support points, clamping areas, current material condition, and fabrication sequence help reveal movement or access questions early.
Datum and inspection intent
Functional faces, pattern origins, feature relationships, and documentation expectations belong in the request instead of being inferred.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful large-format review.
You do not need every answer before submitting. Share what is known and mark the rest for follow-up.
- Common request types
- Large plates, machine bases, fixture and base plates, tooling blocks, mold bases, structural frames, and welded fabrications
- Helpful files
- STEP or STP model, matching PDF drawing, DXF when useful for a face or pattern, dimensioned sketch, or clear photos of an existing part
- Size and setup context
- Raw-stock and finished dimensions, estimated weight, support or lifting points, clamping restrictions, access directions, and faces that may require another orientation
- Functional requirements
- Material grade and condition, quantity, target timing, primary datums, critical faces and patterns, finish, and inspection or documentation needs
Interactive large-format review
Explore the details that shape a large-format milling review.
Select a feature on the sample baseplate to see what the model and drawing should communicate before the project path is confirmed.
Sample large-format baseplate
The numbered markers match the review features and guidance panel.
Illustrative example only; markers identify review areas, not dimensions or tolerances.
Large-format part review
What should the model and drawing explain?
Choose a feature group to see the details that help clarify the request.
Large-area surface, flatness, and stock condition
A broad machined face should distinguish the functional surface from general cleanup and show the stock condition, allowance, and flatness or thickness relationship that matters.
- Functional surface and cleanup boundary
- Raw stock condition and machining allowance
- Flatness, thickness, and opposing-face relationship
Helpful drawing detail
Mark the functional face, starting stock, cleanup allowance, and only the flatness, thickness, or finish requirements the assembly needs.
Process fit, equipment fit, achievable tolerances, inspection, documentation, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common large-format milling request patterns, kept easy to scan.
These examples help identify the likely starting point. Process fit, equipment fit, achievable tolerances, and availability are confirmed from the project files.
Large-area faces and thickness relationships
Broad facesPlates, bases, tooling blocks, and fabricated structures with broad surfaces defined by cleanup, stock allowance, flatness, thickness, finish, and opposing-face intent.
Long-span holes, pockets, slots, and reference features
Patterns & featuresDistributed patterns and local features reviewed with their origin, feature definition, critical relationships, and inspection intent.
Features across top and side faces
Access & orientationParts with features on more than one face reviewed for access direction, support, clamping clearance, shared datums, and possible orientation changes.
Datum, finish, and inspection requirements
CompletionFunctional faces, long-distance relationships, edge condition, surface requirements, documentation, and inspection expectations reviewed with the request.
Quote workflow
From files to a confirmed large-format path.
A short, human-managed review keeps size, support, geometry, and open questions visible before work is accepted.
- 01
Share the part
Upload the model, drawing, photos, stock size, estimated weight, material preference, quantity, and known functional requirements.
- 02
Review the large-format drivers
Envelope, support, stock or fabrication condition, access, datums, patterns, finish, and inspection intent are organized for follow-up.
- 03
Confirm the path
Equipment fit, achievable tolerances, fulfillment, timing, and remaining questions are resolved before acceptance.
- 04
Coordinate the project
Approved files and requirements become the reference point for project communication and delivery planning.
Drawing readiness
Small decisions that make an oversized part easier to review.
Clear functional intent is more useful than applying close requirements everywhere.
Design intent before assumptions
- 01
Provide both raw and finished envelopes.
Include the starting stock and final overall dimensions, plus estimated weight, so fit and setup questions begin from the correct geometry.
- 02
Identify the stable primary datum.
Distinguish the face that locates or mates the part from general cleanup surfaces and show the relationships controlled from it.
- 03
Describe stock and fabrication condition.
State the material grade, stock form, weld condition, and planned heat-treatment or stress-relief sequence when known.
- 04
Show support, clamping, and access constraints.
Mark allowed support, lifting, and clamping zones along with keep-clear areas and faces that need tool or inspection access.
- 05
Separate pattern-wide requirements from local ones.
Define which long-span relationships affect function, anchor them to clear datums, and avoid chained locations where possible.
- 06
State finish and inspection intent by face.
Mark functional faces, patterns, edges, and required documentation instead of treating every surface as equally critical.
Materials
Common materials for large-format milling review.
Grade, form, condition, finish, and availability are confirmed for each request.
Material guide
Aluminum
Large fixture plates, baseplates, tooling plates, and lightweight structural details where grade, stock condition, and broad-face intent matter.
6061 · MIC-6 · 7075 examples
View materialMaterial guide
Tool steel
Tooling blocks, mold-related bases, fixture plates, and wear-related details where grade, condition, allowance, and sequence need review.
A2 · D2 · O1 · H13 examples
View materialMaterial guide
Stainless steel
Corrosion-resistant plates, bases, frames, and equipment details where grade, support, access, and finish belong in the request.
304 · 316/316L · 17-4 PH examples
View materialMaterial guide
Cast iron
Bases, housings, cast structures, and replacement components where casting condition, support, datum, and cleanup allowance matter.
Gray · ductile · Ni-Resist examples
View materialContinue exploring
Related services and application guides.
CNC Milling
Review pockets, faces, datum relationships, and hole patterns on standard-envelope parts.
Surface Grinding
Review flatness, parallelism, final thickness, datum-face, and surface-finish requirements.
Large Parts
Review envelope, weight, support, access, datum, and inspection context for oversized components.
Inspection
Review critical dimensions, datums, long-span feature relationships, and documentation expectations.
Construction & Heavy Equipment
See common base, frame, structural, and equipment-component request contexts.
Energy & Power Generation
See common baseplate, frame, skid, and large-component request contexts.
FAQ
Large-format milling quote questions.
A STEP or STP model and matching PDF drawing are a strong starting pair. Add raw-stock and finished dimensions, estimated weight, material and current condition, quantity, primary datums, critical faces and patterns, support or access constraints, finish, inspection or documentation needs, and target timing when known.
Large plates, bases, fixture and tooling plates, tooling blocks, mold bases, structural frames, and welded fabrications may be submitted for review. Process fit, equipment fit, and availability are confirmed from the project files.
Those details shape envelope, workholding, orientation, tool-access, and inspection questions. Share the known dimensions, estimated weight, allowed support or clamping zones, lifting points, and keep-clear areas with the request.
Identify the primary datum and functional face, starting allowance, required flatness, thickness or finish, pattern origin, critical relationships, and complete hole or local-feature details.
State the material grade, weld and current condition, planned heat-treatment or stress-relief sequence, finish areas, critical features, and documentation expectations. The final process and inspection scope are confirmed from the project files.
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Start with the files you have
Ready to review a large-format milling request?
Share the model, drawing, stock information, photos, and known requirements. Pearson will follow up on the details that still need confirmation.
Request a large-format quote
