Machine envelope and mass context
Raw and finished dimensions, approximate mass, stock form, and features extending beyond the main body help establish machine-envelope questions without implying a published capacity.

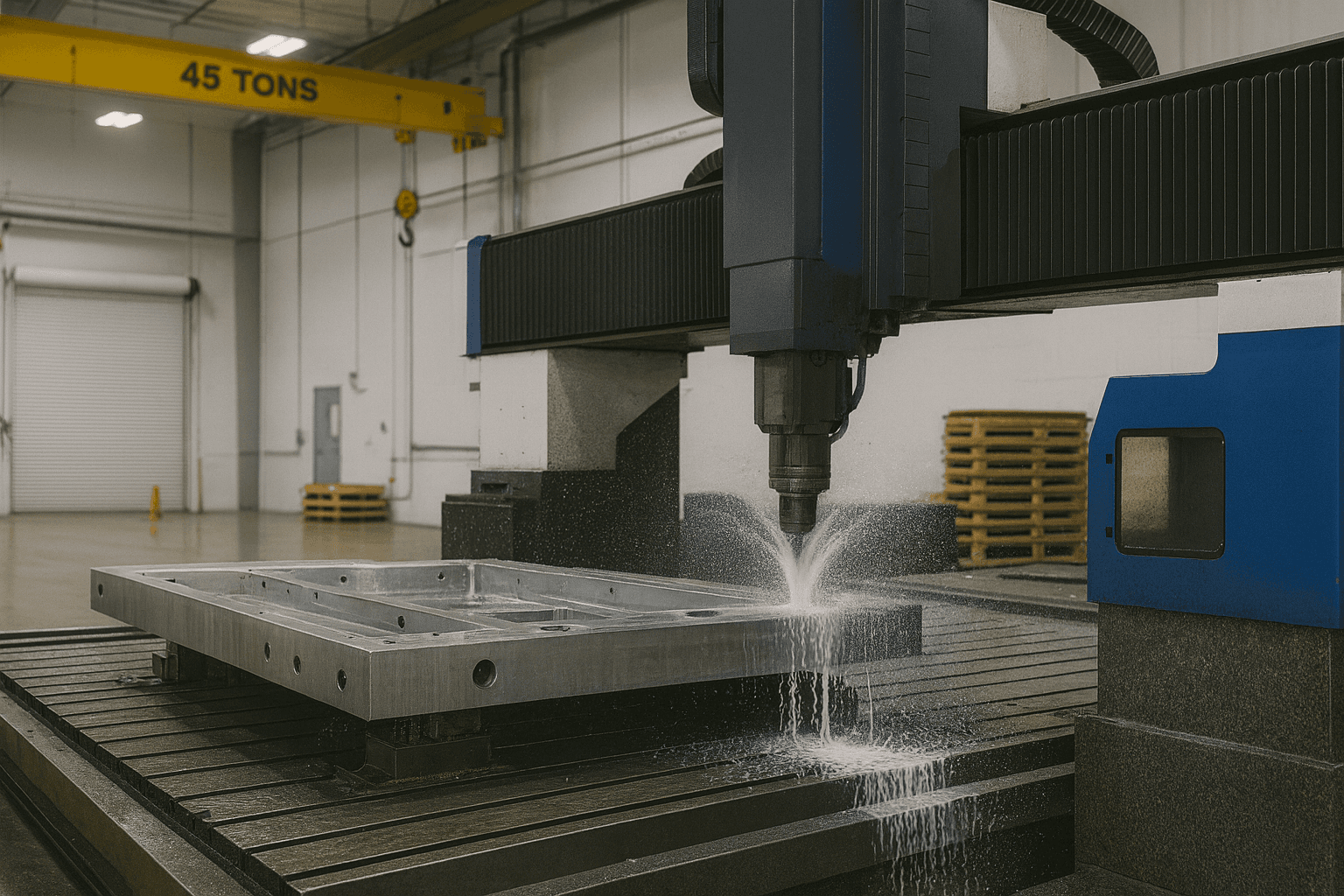

Large component machining services
Large component machining, planned from envelope, support, and datum intent.
Large plates, frames, bases, long components, weldments, and heavy workpieces raise review questions around raw and finished geometry, approximate mass, current condition, support, access, handling features, datums, long-span relationships, finish, and inspection. Share the model and drawing so those constraints can be organized and a project path confirmed before acceptance.
- Finished and raw envelope
- Support and access context
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
A clearer way to review large and awkward components.
Scaling a component changes the questions before a path is selected. Raw and finished envelope, approximate mass, stock or fabrication condition, support and clamping areas, feature access, orientation changes, customer-approved handling features, functional datums, long-span relationships, finish, and inspection access should be visible in the request.
Support, access, and condition
Current material or fabrication condition, allowed support and clamping zones, access directions, protected faces, and possible orientation changes belong in the files.
Datum and inspection intent
Functional faces, pattern origins, long-distance relationships, required inspection conditions, and documentation expectations should be stated instead of inferred.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful large-component review.
You do not need every answer before submitting. Share what is known and mark the rest for follow-up.
- Common request types
- Long plates, frames, machine bases, rails, shafts, heavy blocks, structural components, weldments, castings, and large replacement-part review
- Helpful files
- STEP or STP model, matching PDF drawing, DXF when useful for a face or pattern, dimensioned sketch, and clear photos of an existing component or mating assembly
- Envelope and handling context
- Raw and finished dimensions, approximate mass, customer-defined lifting or handling features, support and clamping zones, keep-clear areas, protected faces, and required access directions
- Functional requirements
- Material grade, form and current cast or welded condition, quantity, target timing, primary datums, critical faces, bores and patterns, process sequence, finish, and inspection or documentation needs
Interactive large-component review
Explore the details that make a large component reviewable.
Select a feature on the sample component to see what the model and drawing should communicate before the project path is confirmed.

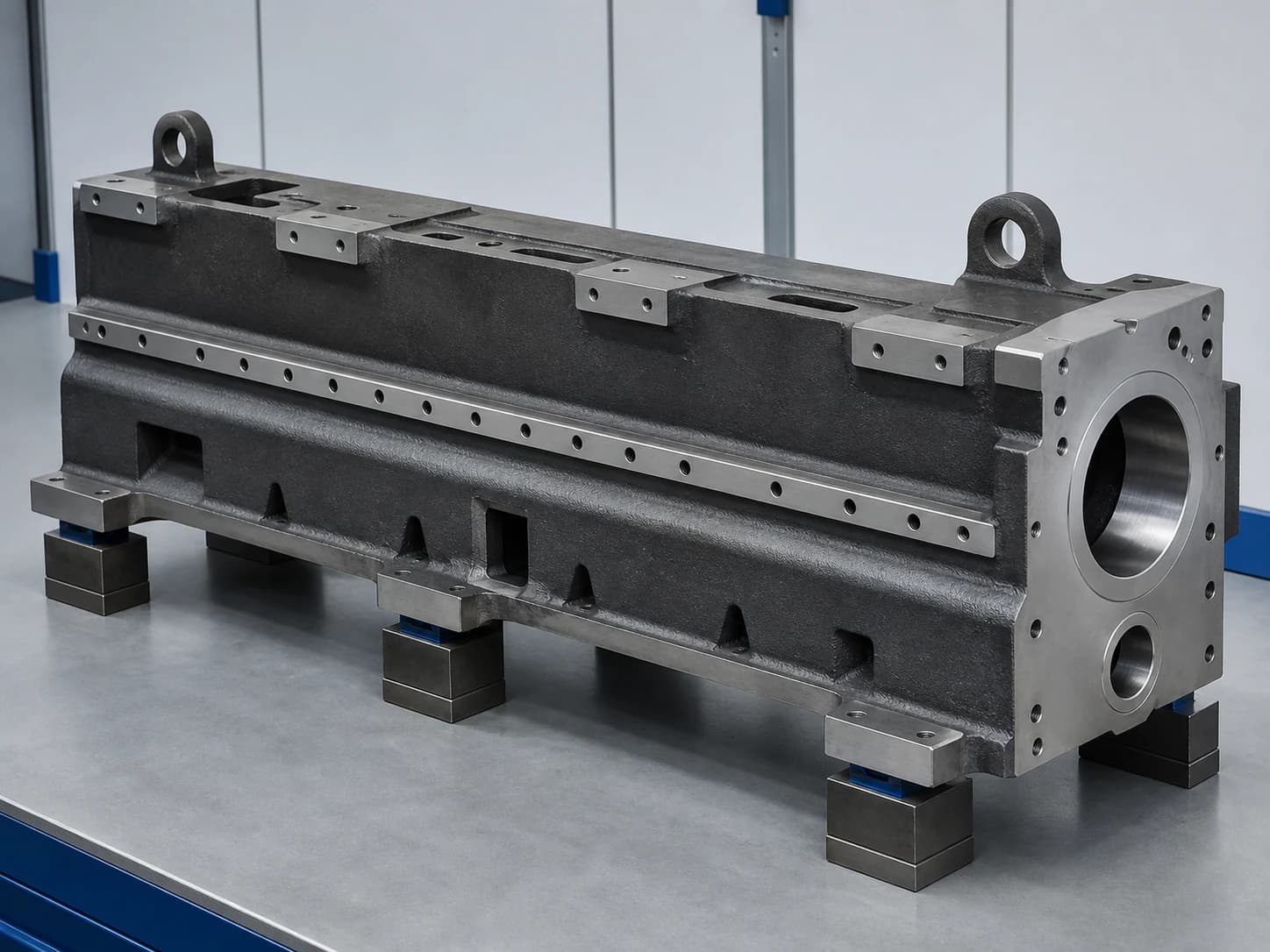

Sample large-component review map
The numbered markers match the review features and guidance panel.
Illustrative example only; markers identify review areas, not dimensions, capacities, handling approval, or tolerances.
Large-component feature review
What should the model and drawing explain?
Choose a feature group to see the details that help clarify the request.
Overall envelope, tool access, and setup sequence
The files should show the complete starting and finished shape, including every projection, access direction, and orientation constraint that affects how the component can be reviewed.
- Raw and finished overall dimensions and approximate mass
- Top, side, end, underside, bore, and inspection access
- Keep-clear areas, protected faces, and possible orientation changes
Helpful drawing detail
Include the raw and finished envelopes, identify every required access direction, and mark temporary or projecting features that change the physical setup context.
Process fit, equipment fit, achievable tolerances, inspection, documentation, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common large-component request patterns, kept easy to scan.
These examples help identify the likely starting point. Process fit, equipment fit, achievable tolerances, and availability are confirmed from the project files.
Large plates, frames, and machine bases
Plates, frames & basesPlate, base, frame, and structural-component requests reviewed from their raw and finished envelope, material condition, broad faces, pads, pockets, bores, hole patterns, datum strategy, and access constraints.
Long shafts, rails, and spanning features
Long componentsLong-part requests reviewed from their support concept, section changes, alignment features, end and side access, functional datums, long-distance relationships, and inspection intent.
Oversized weldments and heavy workpieces
Weldments & blocksFabricated, cast, or solid-component requests reviewed from their current condition, sequence, support areas, customer-approved handling features, cleanup allowance, access, and mating context.
Setup, handling, finish, and inspection requirements
CompletionOrientation, allowed support and clamping zones, protected surfaces, functional relationships, edge and finish requirements, documentation, and inspection expectations reviewed together.
Quote workflow
From files to a confirmed large-component path.
A short, human-managed review keeps size, condition, access, support, datums, and open questions visible before work is accepted.
- 01
Share the component
Upload the model, drawing, photos, raw and finished dimensions, approximate mass, material grade or preference, quantity, and known functional requirements.
- 02
Review the large-part drivers
Envelope, current condition, support, access, customer-defined handling features, datums, long-span relationships, finish, and inspection intent are organized for follow-up.
- 03
Confirm the path
Process fit, equipment fit, achievable tolerances, fulfillment, timing, and remaining questions are resolved before acceptance.
- 04
Coordinate the project
Approved files and requirements become the reference point for project communication and requirement control.
Drawing readiness
Small decisions that make a large component easier to review.
Clear physical and functional intent is more useful than assuming a method or applying close requirements everywhere.
Design intent before assumptions
- 01
Provide both raw and finished envelopes.
Include starting and final overall dimensions, approximate mass, stock form, and any projections or temporary features that change the physical review context.
- 02
State the current condition and planned sequence.
Identify whether the component begins as plate, bar, block, casting, or weldment, plus known stress-relief, heat-treatment, fabrication, roughing, finishing, or coating steps.
- 03
Share approved support and handling information.
Mark customer-approved lifting or handling features, allowed support and clamping zones, keep-clear regions, and surfaces that cannot be marked; do not rely on appearance alone.
- 04
Show every access and orientation constraint.
Identify top, side, end, underside, bore, and inspection access along with assembly features or projections that restrict approach or possible orientation changes.
- 05
Build dimensions from stable functional datums.
Separate locating or mating faces from general cleanup and anchor long-span patterns, bores, pads, rails, and alignment features to the relationships that control assembly.
- 06
Tie close requirements to function and verification.
Identify the relationships that need close control, how acceptance should be evaluated, any required measurement condition, and the documentation needed instead of treating every feature as equally critical.
Materials
Common materials for large-component machining review.
Grade, form, current condition, starting allowance, finish, and availability are confirmed for each request.
Material guide
Cast iron
Machine bases, housings, cast structures, and replacement-component requests where grade, casting condition, allowance, support, datum, and cleanup intent need review.
Gray · ductile · Ni-Resist examples
View materialMaterial guide
Stainless steel
Plate, frame, base, shaft, and equipment-component requests where the exact grade, form, current condition, access, sequence, and finish belong in the review.
304 · 316/316L · 17-4 PH examples
View materialMaterial guide
Aluminum
Large plates, tooling bases, frames, fixtures, and structural-component requests where grade, stock condition, support, datum, feature, and finish intent matter.
6061 · 5052 · tooling plate examples
View materialMaterial guide
Tool steel
Tooling blocks, die-related components, fixture bases, and wear-related details where grade, current condition, allowance, sequence, and final geometry need review.
A2 · D2 · O1 · H13 examples
View materialContinue exploring
Related services and application guides.
Gantry Milling
Review large-format plates, bases, weldments, broad faces, long-span patterns, support, access, and datum intent.
Large Turning
Review long shafts, large rings and flanges, support requirements, rotational features, datums, finish, and inspection intent.
Welding
Review fabricated frames, bases, structural components, weld condition, sequence, cleanup, datum, and finish requirements.
Inspection
Review functional datums, long-span dimensions, large patterns, feature relationships, measurement conditions, and documentation expectations.
Construction & Heavy Equipment
See common frame, base, structural, repair, and equipment-component request contexts.
Industrial Machinery & Equipment
See common machine-base, frame, rail, shaft, housing, and replacement-component request contexts.
FAQ
Large component machining quote questions.
A STEP or STP model and matching PDF drawing are a strong starting pair. Add raw and finished dimensions, approximate mass, material grade and current condition, photos, quantity, target timing, primary datums, critical features, support or access constraints, finish, and inspection or documentation needs when known.
Long plates, frames, bases, rails, shafts, heavy blocks, castings, weldments, structural components, and large replacement parts may be submitted. Physical fit, process fit, equipment fit, achievable tolerances, handling requirements, and availability are confirmed from the project files.
Those details frame physical fit, support, access, orientation, handling, and inspection questions. Include projections, temporary features, starting allowances, and customer-defined lifting or support information where relevant.
Mark customer-approved handling features, allowed support and clamping zones, keep-clear areas, protected faces, centre-of-mass information when already established, and the directions needed to reach or inspect critical features.
Identify functional locating and mating faces, anchor long-distance features to clear datums, distinguish critical relationships from general dimensions, and state the required acceptance method, measurement condition, and documentation without assuming one inspection approach.
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Start with the files you have
Ready to review your large-component requirements?
Share the model, drawing, photos, raw and finished dimensions, approximate mass, current condition, and known functional requirements. Pearson will follow up on the details that still need confirmation.
Request a large-component quote
