Callout before method
Standard or series, thread form, nominal size, pitch or lead, class or allowance, hand, and any special geometry should be explicit before a process path is confirmed.
Tapping and threading services
Tapping and threading, planned around complete callouts, usable depth, and assembly intent.
Internal and external threads, through or blind features, pipe or power-thread callouts, repairs, and inserts all depend on the definition in the files. Share the thread standard or series, form, size, pitch or lead, class or allowance, hand, usable length or depth, relief and runout, datum relationship, access, mating context, material condition, finish, and inspection intent so the request can be organized and a project path confirmed before acceptance.
- Complete thread callouts
- Depth, relief, and access review
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
A clearer way to review threads as functional interfaces.
A thread request is more than a nominal size. A useful review separates internal from external geometry, identifies the governing standard or thread form, defines pitch or lead and fit intent, distinguishes usable thread from total feature depth, shows relief and runout, anchors the axis and mating interface to functional datums, and states material condition, finish allowance, assembly context, repair intent, and acceptance requirements.
Usable thread, relief, and access
Complete engagement length, total blind-feature depth, lead-in, shoulder clearance, relief, runout, entry direction, and restricted access should be separated clearly.
Mating and verification intent
Mating-component information, functional datums, assembly conditions, coating or finish allowance, critical characteristics, and inspection expectations belong in the request instead of being inferred.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful tapping and threading review.
You do not need every answer before submitting. Share what is known and mark the rest for follow-up.
- Common request types
- Internal and external threads, through and blind threaded features, bosses, studs, sleeves, fittings, ports, pipe and power-thread callouts, custom profiles, rethreads, damaged-thread repairs, inserts, and sample-led replacements
- Helpful files and references
- STEP or STP model, matching PDF drawing, enlarged thread details and section views, thread table where useful, mating-component drawing or hardware information, clear photos with scale, and a note when an existing sample may be available for review
- Thread and feature definition
- Standard or series, thread form, nominal size, pitch or lead, class or allowance, hand, internal or external condition, usable length or depth, total blind-feature depth, tap drill information when already defined, lead-in, relief, runout, shoulder relationship, axis datum, and access direction
- Functional and inspection requirements
- Mating component and assembly conditions, fit or sealing intent, material grade and current condition, quantity, target timing, coating or finish allowance, edge requirements, repair or insert intent, critical characteristics, inspection scope, and documentation needs
Interactive thread review
Explore the details that make a thread request easier to review.

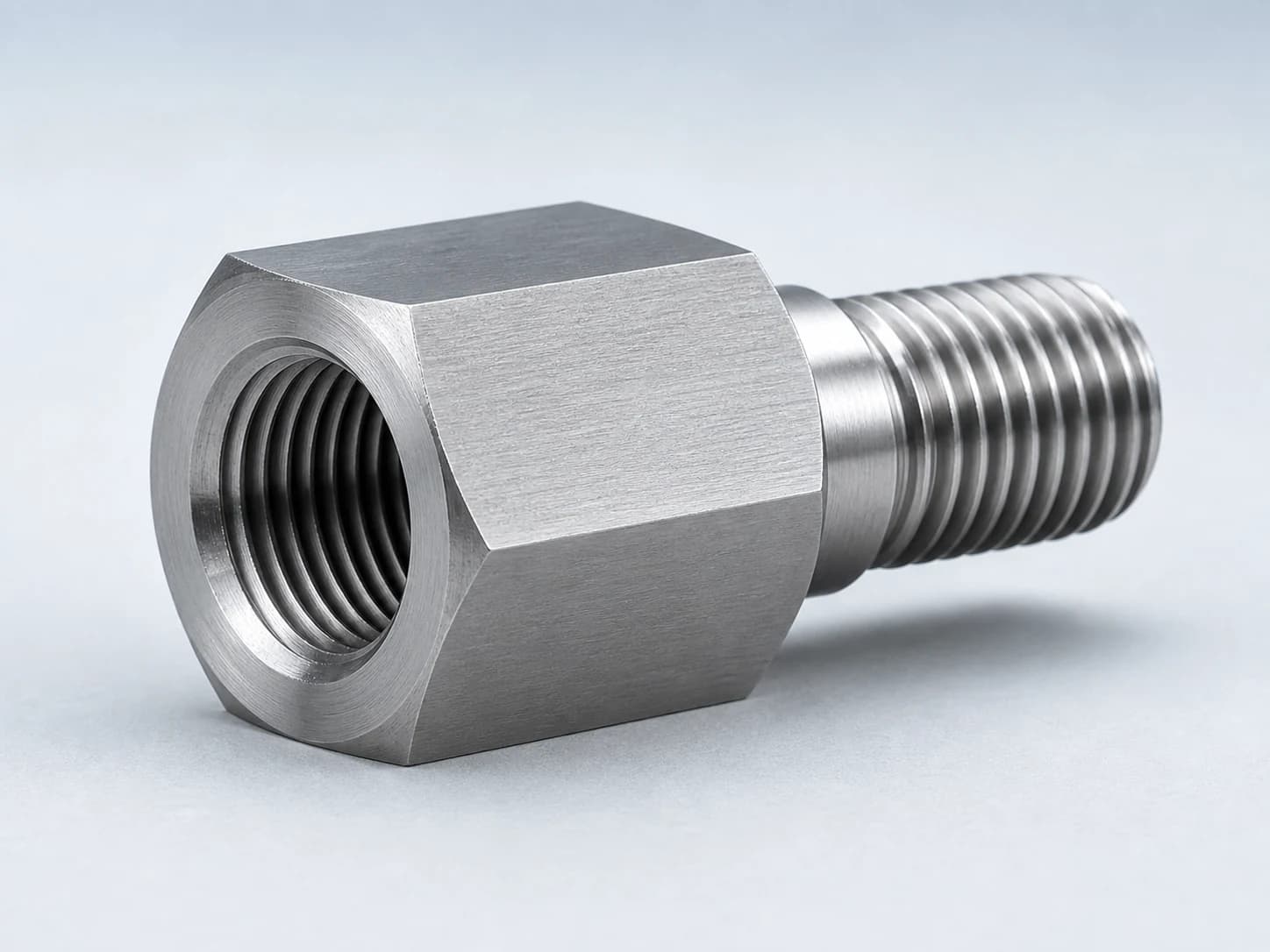

Select a feature on the threaded adapter to see what the model, drawing, enlarged views, mating information, and requirement notes should communicate before the project path is confirmed.
Thread feature review map
The numbered markers connect the sample thread features to the guidance panel.
Illustrative example only; markers identify review areas, not original dimensions, thread standards, class, inspection approval, or tolerance.
Tapping and threading review
What should the thread definition explain?
Select a review feature to see the details that help clarify the request.
Thread size, pitch, class, and usable-depth intent
An internal-thread request should distinguish the complete thread definition and required usable thread from the total hole depth, clearance beneath it, and mating function.
- Thread form or standard, nominal size, pitch, class, and hand
- Usable thread depth, total hole depth, and through or blind condition
- Entrance, mating component, functional fit, and inspection intent
Helpful drawing detail
Use a section view when needed and identify the complete callout, usable thread depth, total hole depth, entry condition, and functional reference.
Process fit, equipment fit, achievable requirements, inspection, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common tapping and threading request patterns, kept easy to scan.
These examples help identify the likely starting point. Process fit, equipment fit, achievable thread requirements, inspection method, fulfillment, and availability are confirmed from the project files.
Internal threads and blind-hole requirements
Internal threadsInternal-thread, tapped-hole, threaded-bore, port, insert, through-feature, and blind-feature requests reviewed from their full callout, usable depth, total depth, bottom condition, lead-in, axis datum, access, edge requirement, mating context, finish, and inspection intent.
External threads, shoulders, and runout
External threadsExternal-thread, stud, shaft-end, sleeve, fitting, and boss requests reviewed from their full callout, usable length, start condition, hand, relief, runout, shoulder relationship, datum axis, mating fit, coating or finish allowance, and inspection intent.
Standard, pipe, power, and custom thread forms
Thread formsUnified, metric, pipe, power, and custom-profile requests reviewed from the governing designation, form, taper or parallel intent, pitch or lead, class or allowance, hand, engagement, datum relationship, mating component, and acceptance requirements.
Repairs, inserts, finish, and inspection requirements
Existing partsDamaged, worn, stripped, incomplete, obsolete, coated, or modified-thread requests reviewed from their current condition, intended repair, retained and protected geometry, insert or replacement intent, mating context, finish allowance, critical characteristics, and inspection or documentation needs.
Quote workflow
From thread definition to a confirmed project path.
A short, human-managed review keeps callouts, usable depth, relief, mating context, repair condition, and open questions visible before work is accepted.
- 01
Share the part and callout
Upload the model, drawing, enlarged details, section views, photos, material and current condition, quantity, mating information, assembly context, and known inspection or documentation requirements.
- 02
Review the thread drivers
Thread designation, internal or external condition, usable length or depth, total blind-feature depth, relief, runout, axis datum, access, mating fit, coating or finish allowance, repair intent, and acceptance criteria are organized for follow-up.
- 03
Confirm the path
Process fit, equipment fit, achievable thread requirements, sample-review needs, inspection method and scope, fulfillment, timing, and remaining questions are resolved before acceptance.
- 04
Coordinate the project
Approved files and requirements become the reference point for project communication and requirement control.
Request readiness
Small decisions that make thread requirements easier to review.
Clear thread and assembly intent is more useful than assuming a method, fit, or inspection approach from nominal size alone.
Design intent before assumptions
- 01
Use a complete, unambiguous thread callout.
State the governing standard or series, thread form, nominal size, pitch or lead, class or allowance, hand, and any special taper, profile, or modification; pair the callout with an enlarged detail or section view when needed.
- 02
Separate usable thread from total feature depth.
For an internal blind hole, distinguish complete usable thread from total drilled or bored depth, bottom condition, incomplete-thread allowance, and clearance beneath the functional engagement.
- 03
Define relief, runout, lead-in, and edge intent.
Show the start condition, permitted runout, shoulder clearance, relief geometry, entry chamfer or countersink intent, exit or breakthrough condition, and any protected edge.
- 04
Anchor thread axes and mating interfaces to functional datums.
Identify the faces, bores, diameters, shoulders, or hole patterns that locate the threaded feature and define any axis position, orientation, concentricity, or face relationship that controls assembly.
- 05
Share the mating component and assembly conditions.
Provide the mating drawing or hardware designation, engagement expectation, fit or sealing intent, repeated-assembly context, restricted access, and any installation or service condition that affects function.
- 06
State repair, coating, insert, and inspection requirements.
Separate current damage or wear from the intended result, identify retained and protected geometry, coating or finish allowance, insert or replacement intent, critical characteristics, measurement condition, acceptance criteria, and documentation needs.
Materials
Common materials for tapping and threading review.
Grade, form, condition, thread definition, finish, inspection needs, and availability are confirmed for each request.
Material guide
Aluminum
Plate, bracket, block, housing, fixture, adapter, boss, insert-related, and repair requests where grade, stock form, thread callout, engagement, mating context, finish allowance, and inspection intent need review.
6061-T6 · 7075-T6 examples
View materialMaterial guide
Stainless steel
Shaft, pin, sleeve, fitting, bracket, plate, housing, port, external-thread, internal-thread, and repair requests where the exact grade, condition, access, callout, finish, and inspection context belong in the review.
303 · 304 · 316/316L examples
View materialMaterial guide
Brass
Fitting, bushing, sleeve, insert, adapter, contact, fine-thread, pipe-thread, and repair-related requests where alloy, stock form, callout, relief, mating intent, finish, and inspection requirements need review.
C360 · C260 · C464 examples
View materialMaterial guide
Engineering plastics
Guide, spacer, bushing, fitting, adapter, fixture, housing, insert, internal-thread, and external-thread requests where the exact polymer, stock form, support, fit, engagement, edge, finish, and inspection intent need review.
Acetal · UHMW · Nylon · PTFE examples
View materialContinue exploring
Related services and application guides.
Drilling & Tapping
Review through and blind holes, tapped features, counterbores, countersinks, patterns, datums, access, edge, and inspection requirements.
CNC Turning
Review shafts, pins, sleeves, fittings, bores, grooves, shoulders, internal or external threads, fits, runout intent, finish, and inspection requirements.
CNC Milling
Review prismatic parts, faces, pockets, slots, profiles, threaded features, hole patterns, datums, finish, and inspection intent.
Manual Machining
Review one-off turned and prismatic parts, threaded features, repairs, replacements, fixtures, adapters, sample condition, finish, and inspection intent.
Machining Repairs
Review worn, damaged, stripped, modified, obsolete, or out-of-requirement threads and the evidence needed to define the intended repair or replacement.
Industrial Machinery & Equipment
See common shaft, sleeve, fitting, adapter, housing, fixture, repair, insert, and replacement-component request contexts.
FAQ
Tapping and threading quote questions.
A STEP or STP model and matching PDF drawing are a strong starting pair. Add enlarged thread details and section views, material and current condition, quantity, complete callouts, usable length or depth, total blind-feature depth, relief and runout, functional datums, access, mating information, coating or finish allowance, repair intent, inspection or documentation needs, and target timing when known.
State the governing standard or series, thread form, nominal size, pitch or lead, class or allowance, hand, and any special taper or profile. Also define internal or external condition, usable length or depth, start and end condition, relief or runout, functional datum, mating context, and verification intent where they affect function.
Identify whether the thread is internal or external and show the axis datum, access direction, start condition, usable engagement, mating interface, and finish allowance. For a blind internal feature, separate usable thread depth from total feature depth, bottom condition, incomplete-thread allowance, and clearance beneath the engagement.
Multiple clear views, a reference scale, key measurements, mating-component information, and notes about wear, stripping, damage, prior changes, retained geometry, and intended function can begin the review. Additional measurements, a model, a drawing, or an approved requirement record may be needed before acceptance; sample-review availability is confirmed during quoting.
Tie the complete thread callout and every critical relationship to functional intent, then state the measurement condition, acceptance criteria, required coverage or sampling, mating check, and documentation needs. If the files specify thread milling, form tapping, or another method constraint, include it as a requirement rather than assuming availability. Process fit, equipment fit, achievable requirements, measurement method, inspection scope, fulfillment, and availability are confirmed during quote review.
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Start with the files you have
Ready to review your thread requirements?
Share the model, drawing, enlarged details, complete callouts, material and current condition, mating context, quantity, coating or finish allowance, repair intent, and inspection requirements. Pearson will follow up on the details that still need confirmation.
Request a threading quote
