Ground-face and datum scope
Identify every face, plane, step, recess, shoulder, land, edge, datum, contact region, and protected surface that belongs in the review.
Surface grinding services
Surface grinding requests, organized around starting stock, datum faces, finished geometry, and surface intent.
A ground plane, datum face, opposite-face relationship, step, recess, or local contact surface needs more than a final thickness. Share the drawing or sample context, exact surface scope, starting size and condition, material and hardness state, stock allowance, datum structure, workholding and support constraints, finished geometry, surface-texture requirement, process sequence, inspection method, quantity, and timing so the request can be organized and a project path confirmed before acceptance.
- Ground faces and datum planes
- Thickness, form, and texture review
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
A flat-surface request should connect starting condition, datum relationships, final geometry, texture, and inspection.

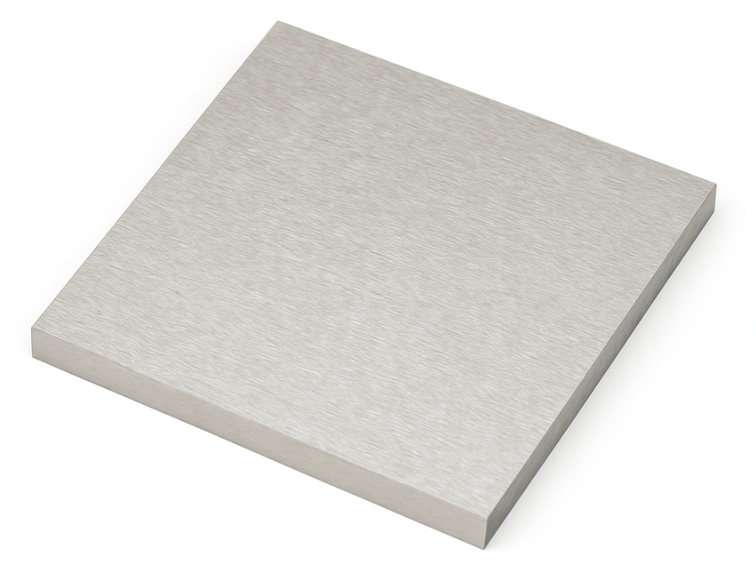

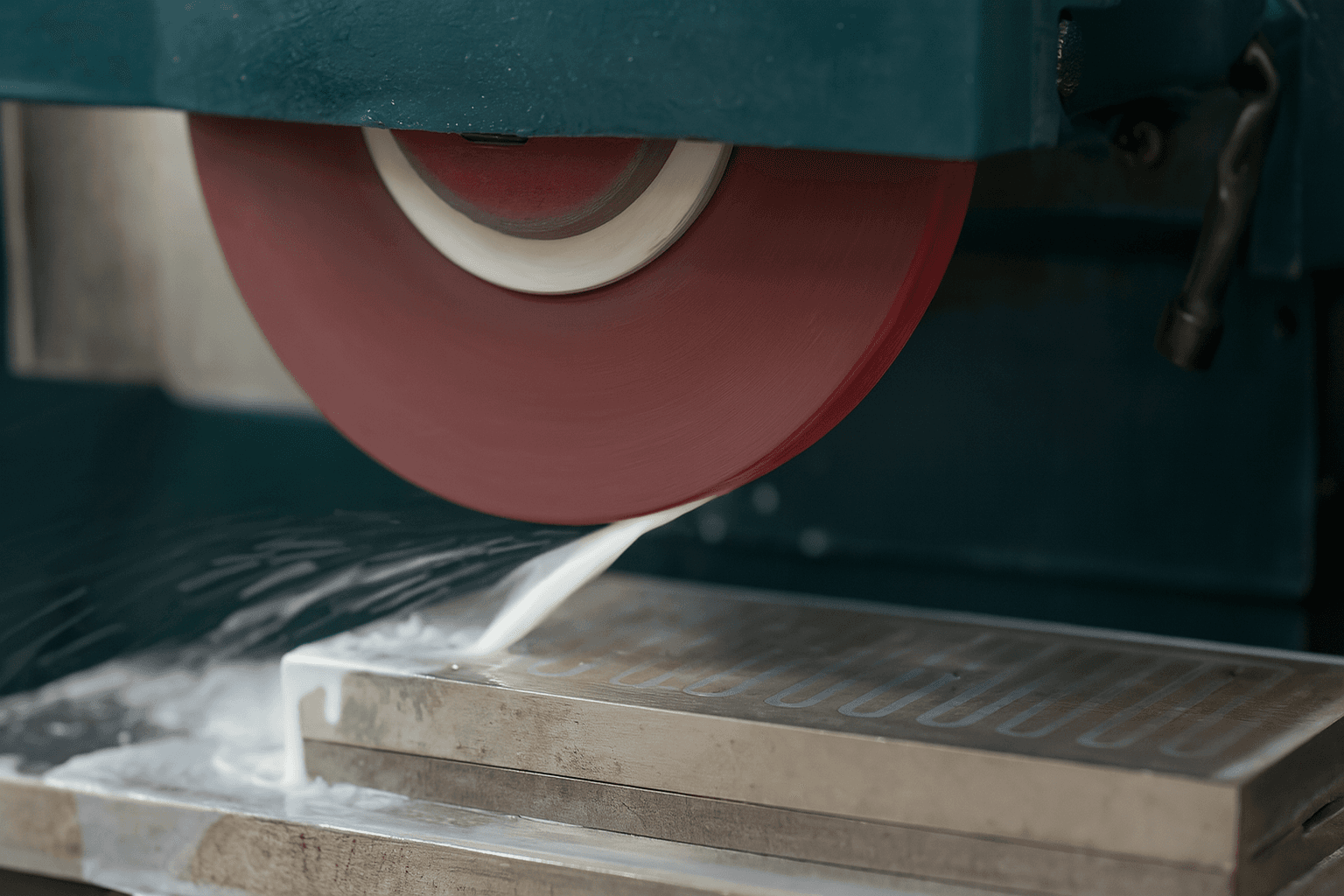

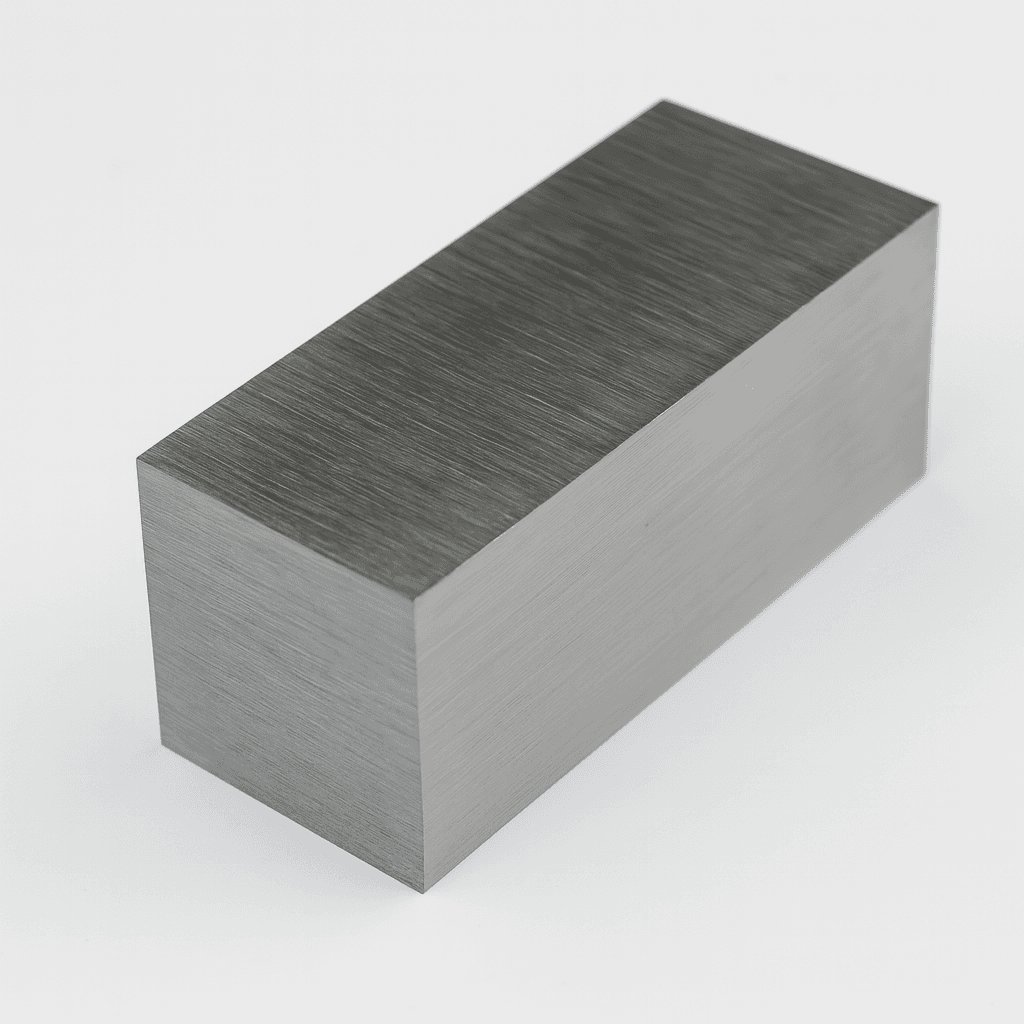

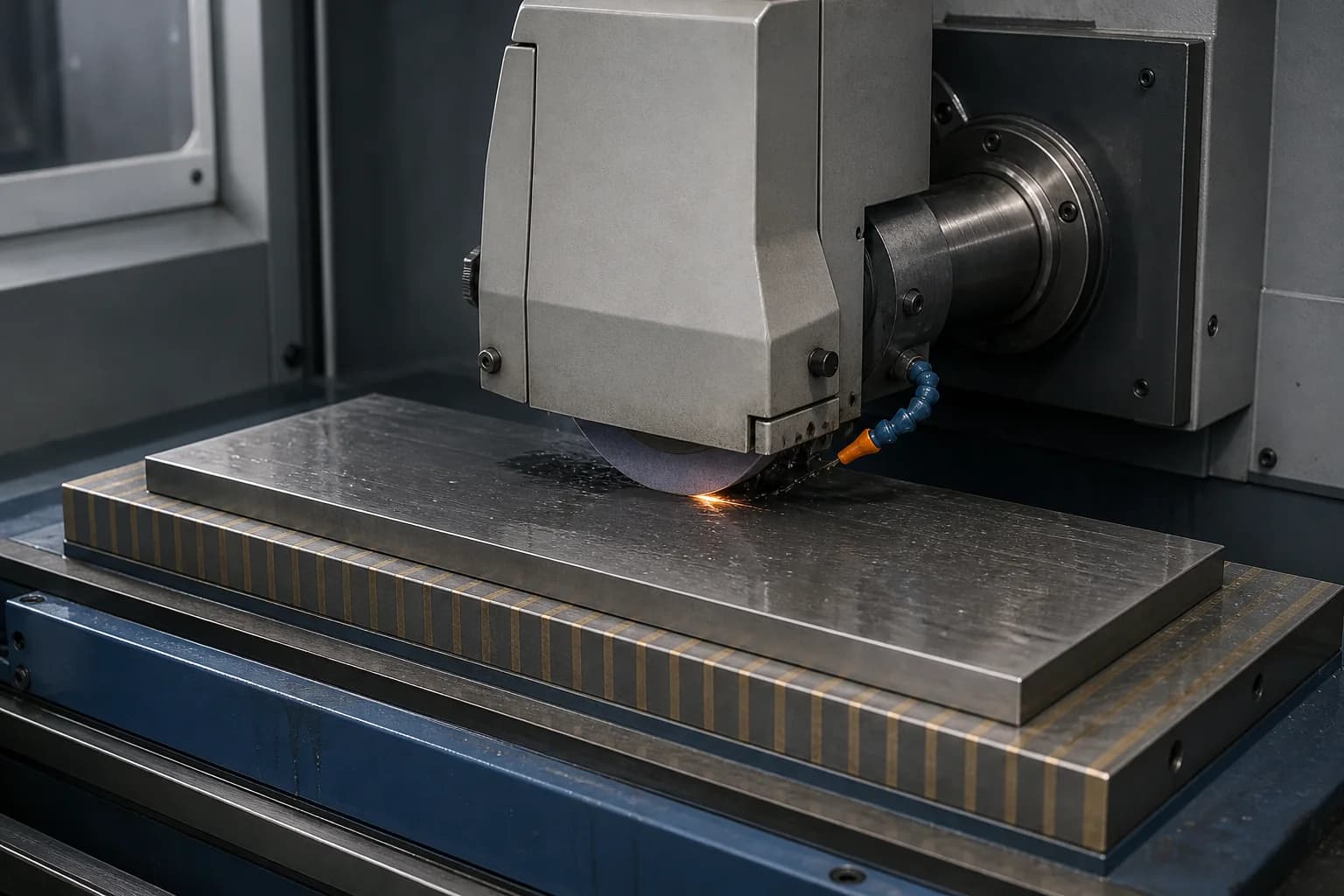

In a common surface-grinding arrangement, a rotating grinding wheel crosses a workpiece supported on a chuck or fixture to address a flat, stepped, recessed, or profiled planar surface. The request still needs to separate starting size and form from final thickness, flatness, parallelism, profile, perpendicularity, surface texture, lay, edge condition, and datum or reference surface relationships. Material grade and hardness, heat-treatment or coating sequence, stock distribution, thin or flexible geometry, magnetic or alternative workholding context, contact and protected areas, thermal-damage concerns on existing parts, measurement condition, and inspection method belong in the same review. The files should define these relationships without assuming a setup, equipment, achieved result, report package, fulfillment route, or availability before quoting.
Starting condition and process sequence
State material grade, hardness or heat-treatment condition, starting size and form, stock allowance by face, prior operations, following operations, current distortion, warpage or damage, coating sequence, and customer-supplied material context.
Geometry, texture, and acceptance
Separate thickness and location from flatness, parallelism, profile, perpendicularity, waviness, surface-texture parameter, lay, and edge intent, then identify the inspection method, measurement condition, coverage, and acceptance criteria.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful surface grinding review.
The quote form accepts private files or a written project description, plus optional process, material, material-source, quantity, and timing details. Select Surface grinding when useful and describe the exact faces, datums, starting condition, finished geometry, texture, or inspection need.
- Part geometry and ground-surface scope
- STEP or STP model, matching PDF drawing, or clear sample photos; overall size; every ground face, datum plane, opposite face, step, recess, shoulder, land, pocket boundary, slot, radius, chamfer, relief, interrupted region, local contact area, edge, hole or feature opening, and access direction
- Starting part, material, stock, and sequence
- Material grade, stock form, starting length, width, thickness and form, stock allowance by face, hardness or heat-treatment state, prior machining, current distortion, wear, damage or thermal-discoloration context, coating or other finish sequence, retained and protected features, and whether customer-supplied material is involved
- Datum, finished geometry, and surface
- Primary, secondary and tertiary datum intent; finished thickness and location; flatness, parallelism, profile, perpendicularity, step or recess depth, angular relationship, waviness, surface-texture parameter and limit, lay direction when specified, contact area, edge break, burr, and cosmetic-surface intent
- Project, inspection, and acceptance requirements
- Quantity, target timing, mating or functional context, workholding and support constraints, permitted contact areas, inspection method and measurement condition, coverage or sampling, acceptance criteria, documentation needs, revision, cleaning, preservation, and handling notes
Interactive request review
Explore the planar relationships that should be visible in the request.
Select a review point on the fixed inspection image to see how the ground face and datum, opposite-face thickness, and surface texture connect to stock allowance, finished geometry, workholding, and inspection intent.

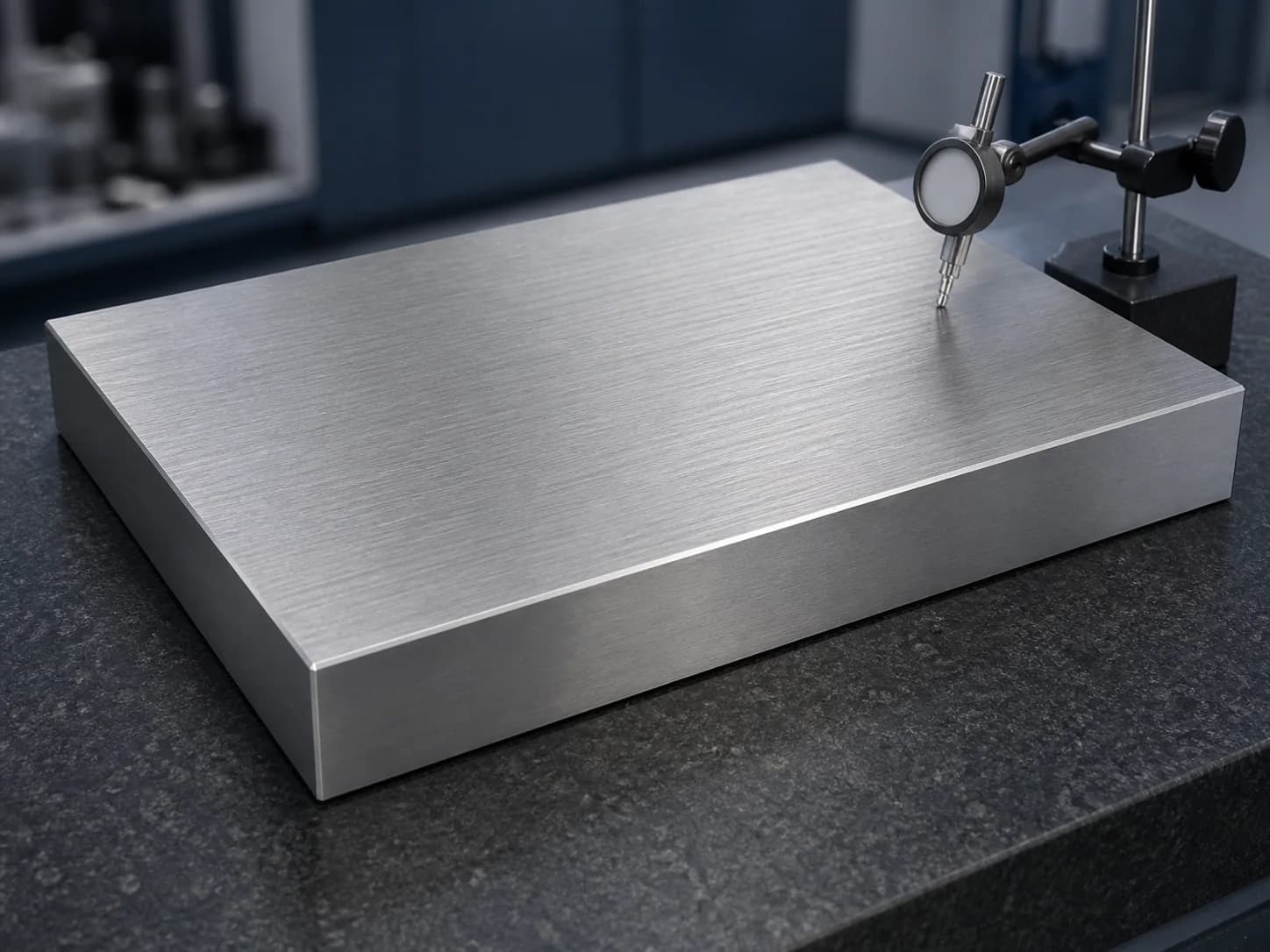

Surface-ground plate in one fixed inspection view
The top datum face, opposite-face thickness, fine grinding lay, and indicator context remain visible together while the request details change.
Illustrative example only; markers identify request-review areas, not original dimensions, material condition, achieved geometry or texture, inspection approval, process route, or capability.
Surface grinding review
What should the planar-surface definition explain?
Select a review feature to see the details that help clarify the request.
Ground face, flatness, and datum relationship
The planar request should distinguish the incoming face and stock from the finished ground area, datum role, flatness requirement, and measurement condition instead of treating the top surface as self-defining.
- Starting face, overall geometry, material and hardness condition, heat-treatment state, distortion, and available grind stock
- Ground area, datum designation, flatness control, edge and corner intent, protected regions, and related faces
- Inspection method, measurement support and condition, coverage, acceptance criteria, and documentation needs
Helpful drawing detail
Mark every face to be ground and identify the datum role, starting condition, grind stock, finished flatness and related geometry, surface requirement, and inspection method.
Process fit, equipment fit, achievable requirements, workholding, material condition, inspection, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common surface grinding request patterns, kept easy to scan.
These examples help organize the starting point. Process fit, equipment fit, achievable requirements, workholding and support, material response, inspection scope, fulfillment, and availability are confirmed from the project files.
Datum planes, plates, blocks, inserts, and broad flat surfaces
Ground facesGround-face requests reviewed from the complete face boundary, starting size and form, stock allowance, material and hardness condition, datum role, contact area, interruptions, edge intent, finished thickness, flatness, profile, surface texture, sequence, workholding context, and inspection method.
Thickness, parallelism, spacers, shims, rails, and matched relationships
Opposite facesOpposed-face requests reviewed from the primary datum, face order, stock distribution, final thickness, parallelism, flatness, profile, contact pattern, thin or flexible geometry, permitted fixture contact, handling, measurement support, coverage, and acceptance criteria.
Steps, recesses, shoulders, lands, local zones, and interrupted surfaces
Planar featuresLocal-surface requests reviewed from the full boundary and access direction, surrounding holes and openings, step or recess depth, shoulder and wall relationships, radii, reliefs, edge and burr intent, grinding wheel access and clearance context, stock, datum structure, texture, and inspection requirements.
Heat-treated, coated, worn, repaired, or customer-supplied parts
Existing or sequenced workExisting-part and sequenced requests reviewed from verified material and starting condition, hardness or heat-treatment state, current distortion, wear, damage or discoloration, available stock by face, retained and protected features, prior and following operations, coating sequence, cleaning and preservation needs, inspection method, quantity, and timing.
Quote workflow
From part definition to a confirmed grinding path.
A short, human-managed review keeps surface scope, starting condition, datum relationships, finished geometry and texture, sequence, inspection, and open questions visible before work is accepted.
