Manual lathe work services
Manual turning, planned around one-off geometry, fit, and repair context.
One-off shafts, pins, bushings, sleeves, spacers, collars, adapters, and round replacement components often begin with a drawing, sketch, photos, or an existing sample. Share the geometry, fit, thread, current-condition, finish, and inspection context so the request can be organized and a project path confirmed before acceptance.
- One-off and repair context
- Fits and thread intent
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
A clearer way to review one-off and replacement turned components.
Manual turning requests are often defined by low quantity, existing-part condition, and functional fit rather than a complete production drawing. A useful request identifies the starting reference, current wear, damage, or prior changes, surfaces to retain or protect, functional diameters and shoulders, mating parts, datum relationships, thread details, material condition, finish, and inspection intent.
Functional fits and retained surfaces
Mating components, critical diameters, shoulders, bores, datum references, and surfaces that must remain unchanged belong in the request.
Thread, finish, and inspection intent
Complete thread information, functional surface requirements, edge condition, acceptance intent, and documentation expectations should be stated instead of inferred.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful manual-turning review.
You do not need every answer before submitting. Share what is known and mark the rest for follow-up.
- Common request types
- One-off shafts, pins, bushings, sleeves, spacers, collars, adapters, couplers, threaded components, round replacement parts, and controlled repair or rework review
- Helpful files and references
- STEP or STP model, matching PDF drawing, dimensioned sketch, multiple clear photos, key measurements, mating-component context, and a note when an existing sample may be available for review
- Geometry and fit definition
- Overall length, outside and inside diameters, shoulders, fits, mating parts, datum and runout intent, threads, grooves, tapers, reliefs, chamfers, and features or surfaces that must remain unchanged
- Project and condition context
- Material grade or preference, current wear, damage or prior modifications, quantity, target timing, intended repair or replacement outcome, finish, edge condition, and inspection or documentation needs
Interactive lathe-work review
Explore the details that make a sample-led turning request clearer.
Select a feature on the sample shaft to see what the photos, model, sketch, or drawing should communicate before the project path is confirmed.
Sample lathe-work review map
The numbered markers match the review features and guidance panel.

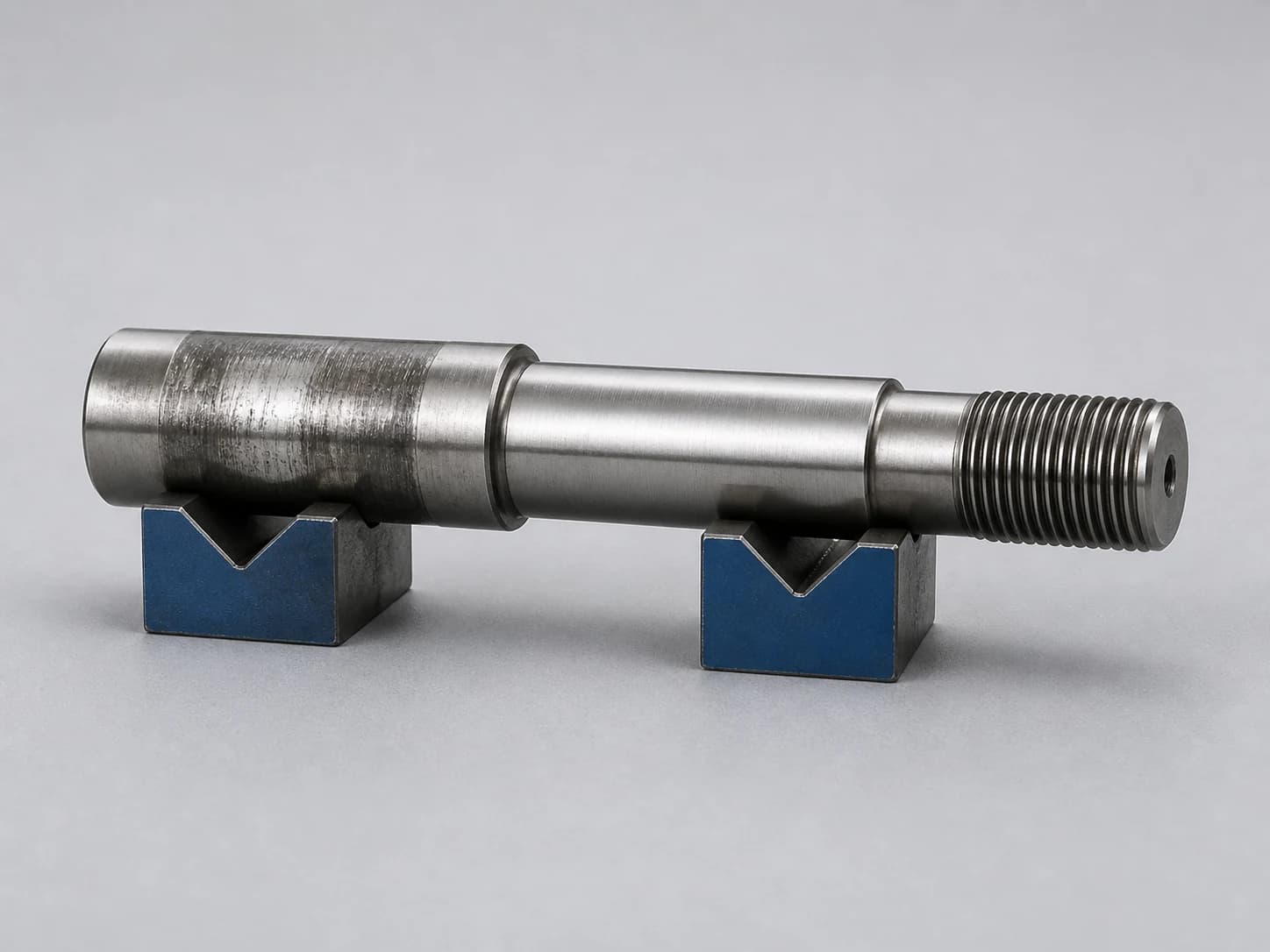

Illustrative example only; wear and markers identify review areas, not original dimensions, material condition, capacity, or tolerance.
Lathe-work feature review
What should the files and sample explain?
Select a review feature to see the details that help clarify the request.
Critical diameters, shoulders, and fit intent
A replacement diameter should be defined from its mating function and axial shoulder relationship rather than copied from a surface that may already be worn.
- Target diameter, fit or tolerance, and the mating component
- Shoulder location, face relationship, and required seating condition
- Surface-texture intent plus any coating or finishing allowance
Helpful drawing detail
Show the target fit and shoulder dimensions on the drawing, and identify which measured sample surfaces are reliable functional references.
Process fit, equipment fit, achievable tolerances, inspection, documentation, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common manual-turning request patterns, kept easy to scan.
These examples help identify the likely starting point. Process fit, equipment fit, achievable tolerances, and availability are confirmed from the project files.
One-off shafts, pins, spacers, and adapters
Shafts & pinsOne-off and low-quantity round-component requests reviewed from their starting reference, overall geometry, outside and inside diameters, shoulders, mating interfaces, threads, datum relationships, finish, and inspection intent.
Bushings, sleeves, collars, and round replacements
Bushings & sleevesBushing, sleeve, collar, coupler, and round replacement-part requests reviewed from their functional bores, outside diameters, lengths, shoulders, walls, mating fits, material condition, edge requirements, and finish intent.
Threads, grooves, tapers, and relief requirements
Turned detailsExternal and internal thread, groove, taper, undercut, relief, chamfer, and transition requirements reviewed from their complete callouts, extent, mating context, access, fit, datum, and verification intent.
Repair, replacement, finish, and inspection requirements
Repair & completionExisting-part condition, intended change, retained or protected surfaces, functional relationships, repair-versus-replacement intent, finish areas, acceptance context, and documentation expectations reviewed together.
Quote workflow
From part context to a confirmed manual-turning path.
A short, human-managed review keeps existing condition, geometry, fits, threads, retained features, and open questions visible before work is accepted.
- 01
Share the part and context
Upload the model, drawing, sketch, photos, key measurements, material information, quantity, mating context, and known functional requirements; note whether an existing sample is available.
- 02
Review the functional details
Current condition, intended change, diameters, shoulders, bores, fits, threads, grooves, tapers, datum relationships, retained surfaces, finish, and inspection intent are organized for follow-up.
- 03
Confirm the path
Process fit, equipment fit, achievable tolerances, sample-review needs, fulfillment, timing, and remaining questions are resolved before acceptance.
- 04
Coordinate the project
Approved files and requirements become the reference point for project communication and requirement control.
Request readiness
Small decisions that make a one-off turned part easier to review.
Clear physical and functional intent is more useful than assuming a method or treating worn sample geometry as the final requirement.
Design intent before assumptions
- 01
Identify the functional diameters and shoulders.
Distinguish bearing, sealing, locating, sliding, clearance, or press-fit features from general surfaces and show the lengths and shoulder locations that control assembly.
- 02
Define datum and mating-fit relationships.
Show which axis, bore, outside diameter, face, or shoulder establishes the functional reference and identify the mating part or fit designation where known.
- 03
Specify each thread completely.
Include the thread standard, size, pitch, class, hand, internal or external form, engagement length or depth, orientation, and verification intent that apply.
- 04
Show reliefs, undercuts, chamfers, and transitions.
Define the required feature at thread runouts, shoulders, diameter changes, and part ends instead of leaving the edge or tool-exit condition implicit.
- 05
Document sample condition and intended change.
Mark wear, damage, distortion, previous repairs, and uncertain dimensions; identify the features to restore, replace, retain, protect, or deliberately change.
- 06
State material, quantity, finish, and inspection intent.
Provide the known grade and current condition, request quantity, repeat or revision intent, finish areas, edge condition, acceptance context, and documentation needs.
Materials
Common materials for manual-turning review.
Grade, form, current condition, finish, and availability are confirmed for each request.
Material guide
Aluminum
Shaft, pin, spacer, sleeve, collar, adapter, prototype, and replacement-component requests where grade, stock form, fit, feature, edge, and finish intent need review.
6061-T6 · 7075-T6 examples
View materialMaterial guide
Stainless steel
Shaft, pin, bushing, sleeve, fitting, adapter, and repair-related requests where the exact grade, current condition, fit, thread, sequence, and finish belong in the review.
303 · 304 · 316/316L examples
View materialMaterial guide
Brass
Bushing, fitting, sleeve, spacer, adapter, connector, and replacement-component requests where alloy, starting reference, bore, thread, edge, and finish intent matter.
C360 · C260 · C464 examples
View materialMaterial guide
Delrin & acetal
Bushing, sleeve, spacer, guide, collar, and non-metallic replacement requests where polymer grade, stock form, fit, wall, edge, and finish requirements need review.
POM-H · POM-C · filled acetal examples
View materialContinue exploring
Related services and application guides.
Manual Machining
Review one-off, repair, replacement, and toolroom-style requests involving mixed round and prismatic features.
Manual Milling
Review one-off faces, slots, pockets, hole patterns, repair details, workholding context, and inspection intent.
Custom Machining Jobs
Review unusual one-off parts, prototypes, sample-led replacements, revisions, rework, and incomplete-file requests.
CNC Turning
Review cylindrical components, outside and inside diameters, shoulders, grooves, threads, fits, datums, finish, and inspection intent.
Machining Repairs
Review worn, damaged, modified, obsolete, or out-of-requirement components and the evidence needed to define the intended repair or replacement.
Industrial Machinery & Equipment
See common shaft, pin, bushing, sleeve, spacer, adapter, repair, and replacement-component request contexts.
FAQ
Lathe work quote questions.
A STEP or STP model and matching PDF drawing are a strong starting pair. A dimensioned sketch or multiple clear photos can also begin the request. Add key dimensions, material information, quantity, current condition, mating context, fits, threads, intended changes, finish, inspection or documentation needs, and target timing when known.
Multiple clear views, a reference scale, key measurements, mating-part context, and notes about wear, damage, prior changes, and intended function can begin the review. Additional measurements, a model, a drawing, or an approved requirement record may be needed before acceptance; sample-review availability is confirmed during quoting.
Identify the functional diameters, bores, shoulders, faces, and mating components, then state which axis or surface establishes the reference and how the critical features relate to it. Add a fit designation or mating limits when known.
State the applicable standard, size, pitch, class, hand, internal or external form, length or depth, orientation, relief or runout detail, mating context, and verification requirement. Add a section view where internal geometry would otherwise be ambiguous.
Show the current wear, damage, distortion, or previous modification and distinguish the geometry to restore, replace, retain, protect, or intentionally change. Process fit, achievable requirements, sample-review needs, inspection, and availability are confirmed from that project information before acceptance.
