Feature scale and access
Small holes, fine slots, narrow pockets, small threads, feature depth, end forms, corner radius intent, and tool access directions should be called out clearly.
Micromachining services
Micromachining, planned around feature scale, access, edge condition, and inspection intent.
Small holes, fine slots, thin walls, miniature turned or prismatic features, and handling-sensitive parts require more than a scaled-down model. Share feature sizes and depths, datums, access, breakthrough condition, supported geometry, edge and burr requirements, material condition, and inspection intent so the request can be organized and a project path confirmed before acceptance.
- Model and enlarged detail views
- Small-feature and datum review
- Scope confirmed per quote
Capability review
This page describes common request types. Available processes, equipment, tolerances, inspection, documentation, and fulfillment are confirmed for each quote.
Overview
Small features become easier to review when function and measurability are explicit.
At a small scale, a feature cannot be reviewed only by how it looks in a model. A useful request identifies the functional datums, feature size and depth, access direction, thin or unsupported geometry, breakthrough and edge condition, material and starting form, handling sensitivity, feature relationships, and how each critical requirement will be accepted.
Edges, walls, and breakthrough
Thin or unsupported geometry, allowed contact zones, breakthrough surfaces, burr intent, edge condition, and protected features belong in the request.
Inspection planned with the requirement
Critical features, datum references, measurement conditions, visual criteria, sampling intent, and documentation needs should be stated before an inspection method is confirmed.
Fulfillment review
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Quote inputs
The information that starts a useful micromachining review.
You do not need every answer before submitting. Share what is known and mark the rest for follow-up.
- Common request types
- Miniature plates, brackets, inserts, pins, sleeves, bushings, small holes and cross-features, fine slots, grooves, narrow pockets, thin walls, tabs, ribs, small threads, and other delicate-feature requests
- Helpful files and views
- STEP or STP model, matching PDF drawing, enlarged detail and section views, DXF where useful, multiple clear photos with scale, mating-component context, and the current revision
- Feature and datum definition
- Hole size, depth, through or blind condition, breakthrough surface, slot width, depth and end form, corner conditions, wall thickness and support, feature relationships, access directions, functional datums, and allowed contact zones
- Functional and inspection requirements
- Material grade and condition, quantity, target timing, mating function, fit and engagement intent, edge and burr requirements, finish areas, cleanliness and handling sensitivity, measurement condition, acceptance criteria, and documentation needs
Interactive micromachining review
Explore the details that make small-feature work easier to review.

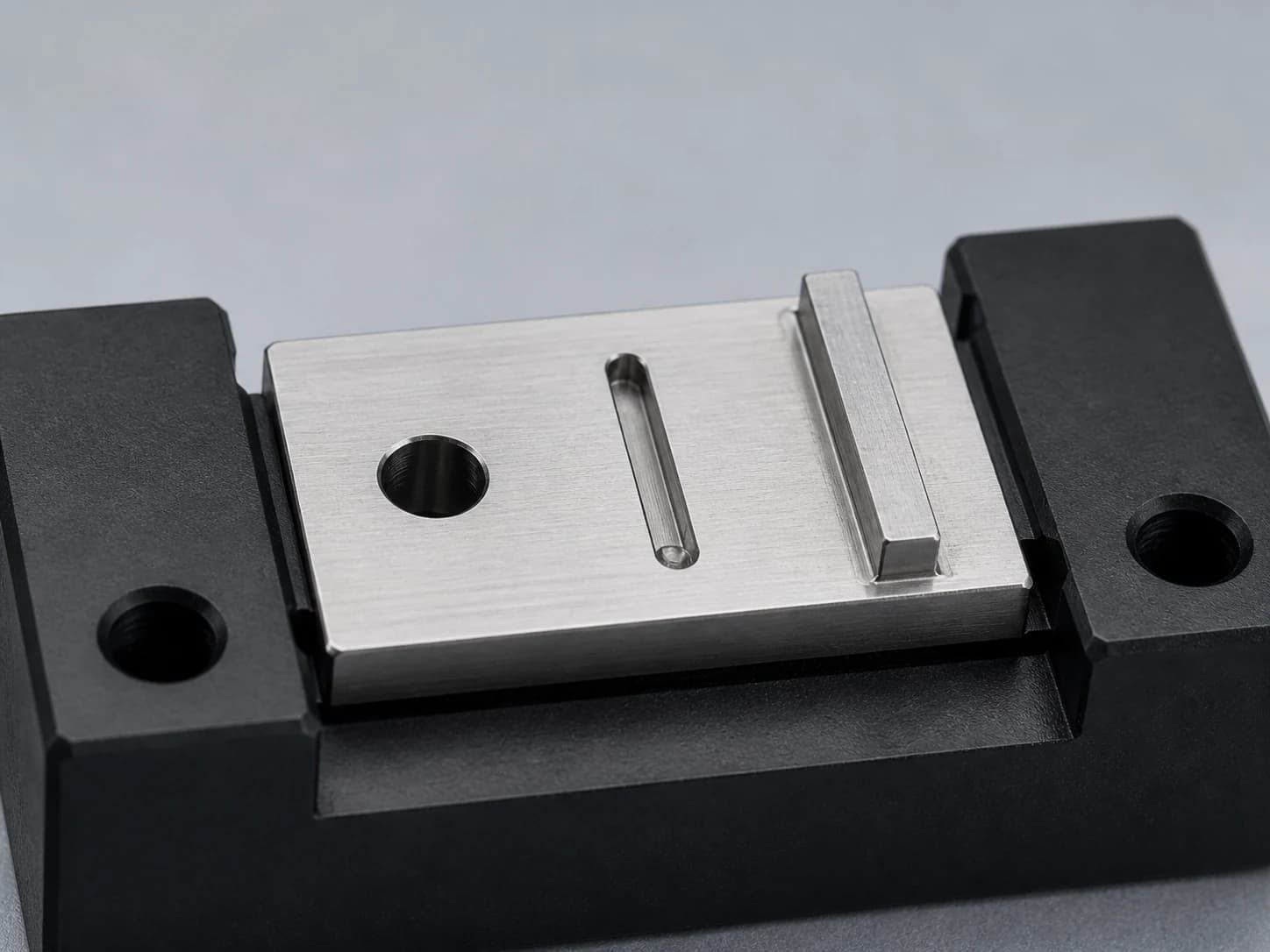

Select a feature on the miniature component to see what the model, drawing, enlarged views, and requirement notes should communicate before the project path is confirmed.
Micromachining feature review map
The numbered markers connect the demonstration features to the guidance panel.
Illustrative example only; markers identify review areas, not original dimensions, material condition, process approval, or tolerance.
Micromachining feature review
What should the small-feature drawing explain?
Select a review feature to see the details that help clarify the request.
Hole size, depth, breakthrough, and datum intent
A small-hole request should define where the feature begins and ends, what controls its location, and how the entry, exit, and edge condition affect function.
- Diameter, depth, through or blind condition, and intended function
- Access direction, datum location, spacing, and adjacent geometry
- Entry, breakthrough, edge condition, burr intent, and inspection method
Helpful drawing detail
Use a section view when needed and identify the hole location, total depth, breakthrough surface, edge intent, and measurement reference.
Process fit, equipment fit, achievable requirements, inspection, fulfillment, and timing are confirmed from the project information during quote review.
Capabilities
Common micromachining request patterns, kept easy to scan.
These examples help identify the likely starting point. Process fit, equipment fit, achievable tolerances, inspection method, and availability are confirmed from the project files.
Small holes and cross-features
Small holesSmall-hole, cross-hole, vent, passage, and other fine-feature requests reviewed from their size, depth, through or blind condition, breakthrough surface, spacing, datum reference, access, edge condition, function, and inspection intent.
Fine slots, grooves, pockets, and profiles
Fine featuresFine-slot, groove, narrow-pocket, profile, and relief requests reviewed from their width, depth, length, end form, corner condition, access, mating relationship, edge requirement, finish, and inspection intent.
Thin walls, tabs, ribs, and delicate geometry
Delicate geometryThin-wall, tab, rib, boss, miniature-feature, and other delicate-geometry requests reviewed from their thickness, height, unsupported length, support and contact zones, protected surfaces, function, handling sensitivity, and acceptance intent.
Edge, burr, finish, handling, and inspection requirements
CompletionBreakthrough edges, intersections, edge breaks, burr restrictions, protected features, finish areas, cleanliness or contamination sensitivity, handling notes, measurement conditions, visual criteria, and documentation expectations reviewed together.
Quote workflow
From small-feature context to a confirmed project path.
A short, human-managed review keeps scale, access, delicate geometry, edges, inspection intent, and open questions visible before work is accepted.
- 01
Share the part and scale
Upload the model, drawing, enlarged detail and section views, photos with scale, material information, quantity, mating context, and known functional requirements.
- 02
Review the small-feature drivers
Feature size and depth, datums, relationships, access, support, breakthrough surfaces, edge and burr intent, handling sensitivity, finish, measurement condition, and acceptance criteria are organized for follow-up.
- 03
Confirm the path
Process fit, equipment fit, achievable tolerances, inspection method and scope, fulfillment, timing, and remaining questions are resolved before acceptance.
- 04
Coordinate the project
Approved files and requirements become the reference point for project communication and requirement control.
Request readiness
Small decisions that make micromachining requests easier to review.
Clear feature and acceptance intent is more useful than assuming a method or applying the same requirement to every surface.
Design intent before assumptions
- 01
Pair the model with enlarged requirement views.
Use the model for shape and add drawing detail or section views for small-feature dimensions, datums, tolerances, depths, edge conditions, finishes, revisions, and inspection intent.
- 02
Define datums and feature-to-feature relationships.
Show which faces, bores, diameters, edges, or holes locate the part and connect each critical feature, pattern, fit, and interface to the references that control function and acceptance.
- 03
Fully define each small hole and cross-feature.
State the size, depth, through or blind condition, breakthrough surface, entrance and exit edge requirements, spacing, orientation, datum reference, mating function, and inspection intent.
- 04
Fully define slots, pockets, thin walls, and access.
State widths, depths, end forms, corner radius or other corner conditions, wall or tab thickness, unsupported length, support and contact zones, protected surfaces, and every required tool access direction.
- 05
State edge, burr, surface, cleanliness, and handling intent.
Identify intersections and breakthrough edges that matter, permitted edge break or rounding, protected features, finish areas, visual criteria, contamination sensitivity, and handling or presentation requirements.
- 06
Make inspection and acceptance requirements explicit.
Identify critical characteristics, datum references, measurement condition, required coverage or sampling, visual criteria, acceptance record, and documentation needs without assuming a particular measurement method.
Materials
Common materials for micromachining review.
Grade, form, condition, feature scale, edge intent, finish, inspection needs, and availability are confirmed for each request.
Material guide
Stainless steel
Miniature pin, sleeve, insert, bracket, plate, fitting, small-hole, fine-slot, thin-wall, and repair-related requests where the exact grade, condition, feature geometry, edge intent, and inspection requirements need review.
303 · 304 · 316/316L examples
View materialMaterial guide
Aluminum
Miniature bracket, plate, block, fixture, housing-detail, insert, fine-pocket, slot, hole, and prototype-aid requests where grade, stock form, datums, edge condition, finish, and inspection intent need review.
6061-T6 · 7075-T6 examples
View materialMaterial guide
Brass
Small pin, sleeve, bushing, fitting, insert, interface, fine-slot, groove, thread, and hole-related requests where the exact alloy, stock form, feature relationships, edge intent, finish, and inspection context belong in the review.
C360 · C260 · C464 examples
View materialMaterial guide
Engineering plastics
Miniature guide, spacer, insulator, nest, insert, fixture, bracket, fine-feature, and thin-wall requests where the exact polymer, stock form, support, fit, edge, finish, handling, and inspection intent need review.
Acetal · UHMW · Nylon · PTFE examples
View materialContinue exploring
Related services and application guides.
CNC Milling
Review prismatic parts, pockets, slots, profiles, hole patterns, datums, setup intent, finish, and inspection requirements.
CNC Turning
Review small shafts, pins, sleeves, bushings, grooves, threads, cross-features, fits, runout intent, finish, and inspection requirements.
Drilling & Tapping
Review hole size, depth, through or blind condition, breakthrough, pattern, thread, access, datum, edge, and inspection requirements.
EDM
Review conductive-material profile, cavity, start-hole, edge, finish, and inspection requirements without assuming a process path.
Inspection
Review dimensional and visual characteristics, datum references, measurement conditions, coverage or sampling, reporting, and acceptance requirements before scope is confirmed.
Electronics & Semiconductors
See common small hardware, interface, bracket, fixture, connector, insert, and tooling request contexts.
FAQ
Micromachining quote questions.
A STEP or STP model and matching PDF drawing are a strong starting pair. Include enlarged detail or section views for the small features, plus material and condition, quantity, functional datums, mating context, feature sizes and depths, access, breakthrough condition, edge and burr intent, finish, handling sensitivity, inspection or documentation needs, and target timing when known.
Miniature plates, brackets, inserts, pins, sleeves, bushings, small holes and cross-features, fine slots, grooves, narrow pockets, thin walls, tabs, ribs, small threads, and other delicate-feature requests may be submitted. Process fit, equipment fit, achievable requirements, inspection method, fulfillment, and availability are confirmed from the project information.
For holes, state size, depth, through or blind condition, breakthrough surface, edge requirements, spacing, orientation, and datum reference. For slots and pockets, state width, depth, length, end form, corner conditions, and mating intent. For thin walls, tabs, or ribs, state thickness, height, unsupported length, support and contact zones, protected surfaces, access, and function.
Identify the entrances, exits, intersections, tips, and protected surfaces that matter. State any permitted edge break or rounding, visual acceptance intent, contamination sensitivity, handling needs, and features that must retain a defined edge rather than using a general note alone.
Tie each critical requirement to its functional datum and acceptance intent, then state the measurement condition, required coverage or sampling, visual criteria, acceptance record, and documentation needs. Equipment fit, achievable tolerances, measurement method, inspection scope, and availability are confirmed during quote review.
Requests are reviewed manually. The fulfillment route and availability are confirmed before acceptance.
Start with the files you have
Ready to review your small part or small-feature request?
Share the model, drawing, enlarged detail views, material, feature geometry, datums, access, edge and burr intent, quantity, handling sensitivity, and inspection requirements. Pearson will follow up on the details that still need confirmation.
Request a micromachining quote
